NLDL 8080 Heavy Duty Bench Scales
General Specifications

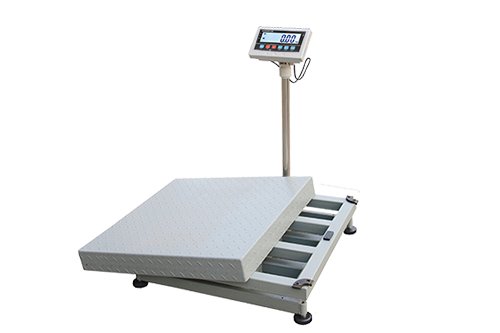

![80x80cm Platform Scales](https://www.develoscale.com/wp-content/uploads/2020/06/DVL-8080-High-Resolution-Platform-Scales.jpg)
Welded pipe structure with best waterproof&anticorrosion
Aluminum or SS single point loadcell
Stainless steel housing Indicator or other economic choice
Wide rectangular stainless steel pole or round pole
Application Weigh Check setting,Counting parts,add total weight.
Mild steel and die-casting aluminum platform selectable
Battery provide up to 70 hours of continuous use (without backlight)
Optional RS-232 communication interface,connect PC or printer
Brand:HanSen,Lyman,Develo,DewelMac
Hs Code: 8423829090
.Capacities | 300kg~1000kg |
. Platform Size | 800mmx800mm |
.Keyboard | 6keys |
.Display | LCD/LED |
.Housing | Mild steel |
.Max. Divisions | 3,000e,6000d,15000d |
.Operate Tem | 0ºC ~ +40ºC |
.Power | AC adapter (8V/500mA),rechargeable battery (6V/4.5Ah) |
.Packing | Master carton packing,dimension 0.226m³ |
.Gross weight | 35kg |

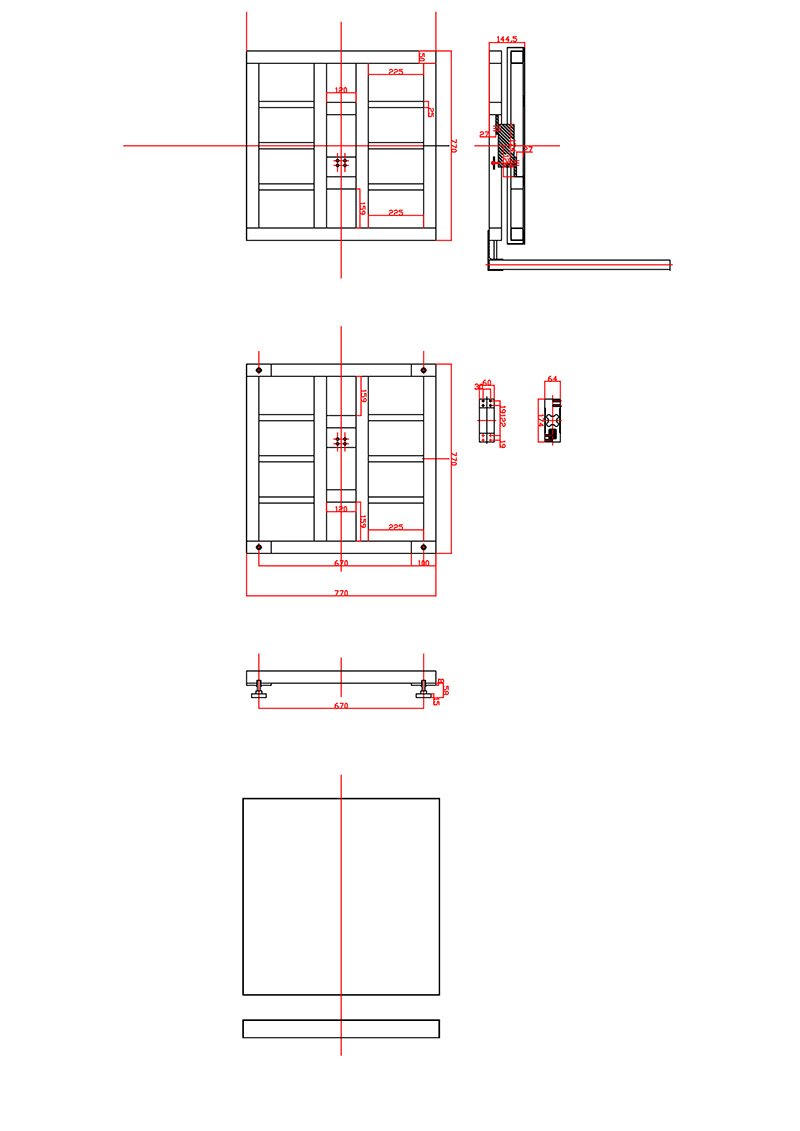

Dimensions(mm)
![DVL 8080 High Resolution Platform Scales 03](https://www.develoscale.com/wp-content/uploads/2020/06/DVL-8080-High-Resolution-Platform-Scales-03.jpg)
![DVL 8080 High Resolution Platform Scales 02](https://www.develoscale.com/wp-content/uploads/2020/06/DVL-8080-High-Resolution-Platform-Scales-02.jpg)
Configuration Table
Model Number | Capacity | Readability | Division | Approval |
---|---|---|---|---|
NLDL-8080-300k | 300g | 10g | 30,000d | CE |
NLDL-8080-600k | 600g | 20g | 30,000d | CE |
NLDL-8080-800k | 800kg | 50g | 16,000d | CE |
NLDL-8080-1000k | 1000kg | 50g | 20,000d | CE |
